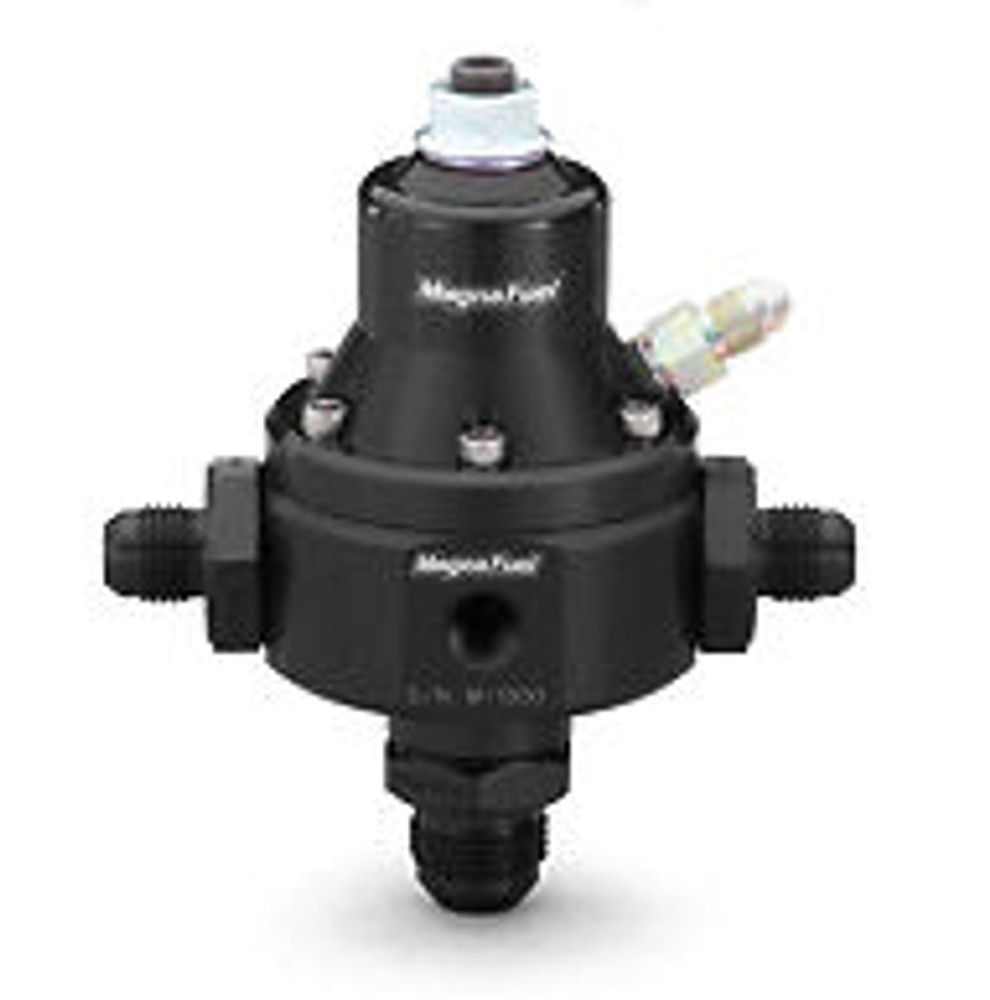

Magnafuel- Fuel Pressure Regulator - 2 Port : Black

Previous Next

Magnafuel

Magnafuel- Fuel Pressure Regulator - 2 Port : Black

Name: Magnafuel- Fuel Pressure Regulator - 2 Port : Black
Brand: Magnafuel
SKU: MP-9950B-BLK
Price: 236 USD
Availability: InStock

0 review Write a Review

Pressure Range (psi): 35-85 Regulator Style: Return Boost/Vacuum Reference Port: Yes Boost/Vacuum Rise Ratio: 1:1 Gauge Port: Yes Mounting Bracket Included…

SKU: MP-9950B-BLK

Shipping: Calculated at Checkout

$236.00

Hurry up! Current stock:

Quantity:

5 customers are viewing this product

Product Details

Product Details

Pressure Range (psi): 35-85

Regulator Style: Return

Boost/Vacuum Reference Port: Yes

Boost/Vacuum Rise Ratio: 1:1

Gauge Port: Yes

Mounting Bracket Included: Yes

Inlet Quantity: Two

Inlet Attachment: Female threads

Inlet Size: -8 AN

Return Attachment: Female threads

Return Fitting Size: -8 AN

Regulator Material: Aluminum

MagnaFuel's EFI fuel pressure control units feature a unique guided-metering valve assembly to provide a more accurate metering of fuel flow and help reduce the pressure drop that can occur at high or sudden changes in fuel demand. The pressure control units are designed to work with the EFI 600 pump and are available in two sizes--large for applications of up to 2,000+ hp and standard for applications of up to 700 hp. Each of these units has a 1/8 in. NPT pressure port for a gauge, a filtered vent fitting or optional boost reference fitting, and is compatible with racing gasoline and alcohol. The units feature a CNC-machined, aircraft-quality aluminum body and are hand-assembled and flow-tested for maximum performance.

Fittings not included.
