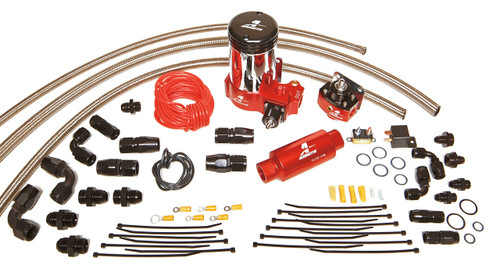

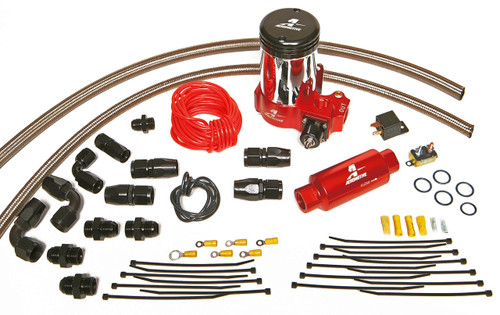

P/N 11202: A2000 Carbureted Fuel Pump

The A2000 flows enough fuel to support the world's quickest nitrous Pro-mods on gasoline, and is the industry's only fuel pump that uses a true diaphragm controlled, adjustable bypass valve, integral to the pump. This design dampens pressure spikes, delivering smoother, more controlled flow and pressure, ensuring more consistent E.T.s and win lights.

• High torque, low RPM motor design delivers more than 350 GPH free flow, while developing less current draw than any other pump in its class.


• Adjustable diaphragm bypass valve outperforms ineffective poppet designs, minimizing flow loss and pressure fluctuation to the regulator and carburetor.


• ORB-10 inlet and outlet ports with ORB-8 return and 1/8" NPT gauge port.


• This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.


• Not for use on 16v Charging systems.  Max inlet voltage 15.5v.


• Proprietary seal design eliminates leakage.


• Alcohol compatible.


• Multiple bolt patterns on the bottom of the pump body fit many chassis mounting options.
